Servo Drivers To Flair - Step/Direction Via QuadBox vs EtherCAT

LIKELY SERVO / QUADBOX

Summary

For third-party servo-driven model movers, the simplest Flair integration may be step and direction from a QuadBox into the servo driver's pulse input. EtherCAT can be more powerful because it may preserve feedback, but it is not just plug-and-play: the drives must be compatible, properly chained, and known to work with Flair / the required EtherCAT master setup. In the Panasonic Minas example, Simon said step/direction is simpler but less powerful because there is no feedback if the axis trips.

Symptoms / Questions

  • Operator has Panasonic Minas servo drivers and wants to use a third-party moco crane as a model mover or light mover.
  • Motors jog correctly from Panasonic software, but Flair cannot ping the existing EtherCAT board.
  • Operator asks for a more elegant way than step and direction from the X4 connectors on the servo drivers to a quad box.
  • Servo drive looks like EtherCAT but does not have the expected daisy-chain RJ45 ports.
  • Operator asks whether to buy a different EtherCAT board.

Settings Location

Task Location
Step/direction output from Flair QuadBox / OctoBox / UltiBox stepper-style output and correctly wired cables
Servo drive pulse input Servo driver connector such as Panasonic Minas X4 pulse / direction inputs
EtherCAT drive integration MRMC / Flair-supported EtherCAT configuration, drive chain, and support validation
Axis scaling Setups -> Axis Setup in real-world units

Community Solutions

[LIKELY] Use Step/Direction When You Need The Simple Path

Step/direction into a compatible servo driver is simpler to integrate than trying to make unknown EtherCAT hardware work directly with Flair. The tradeoff is that Flair may not receive servo feedback or know if the axis trips.

Confidence: 0.76

[NEEDS CONFIRMATION] EtherCAT May Work, But It Must Be Tested With MRMC / Flair

The drives may look like EtherCAT, but Flair compatibility is not guaranteed. Simon advised making sure it works before buying expensive EtherCAT hardware, and noted it is not simply a matter of plugging it in.

Confidence: 0.62

[LIKELY] Daisy-Chain Matters For EtherCAT

If EtherCAT is used, the drives normally need to be daisy-chained so Flair can talk through the chain. A drive with no EtherCAT out may limit the chain.

Confidence: 0.66

Evidence

Timestamp User Evidence
2025-08-27 Buddy Bleckley Seeder moco crane had Panasonic Minas servo drivers; motors jogged from Panasonic software; Flair could not ping the z motion EtherCAT board.
2025-08-27 Buddy Bleckley Asked whether there was a more elegant path than step/direction from X4 connectors on the servo drivers to a QuadBox.
2025-08-27 Simon Wakley Said it looks like EtherCAT, but drives would have to be daisy-chained; step and direction is simpler but less powerful because there is no feedback if it trips.
2025-08-27 Simon Wakley Warned to make sure EtherCAT hardware works with MRMC/Flair before buying because it is not simply plug-and-play.
Image description: Panasonic Minas AC servo driver wiring in a third-party moco crane; visible text includes Panasonic, AC SERVO DRIVER, MCDLT35SF, 200V, CHARGE, A/B. Image description: Panasonic servo driver connectors including XA, XB, XC, X3, X4, X5; X4 is discussed as the possible step/direction connector path to a QuadBox.

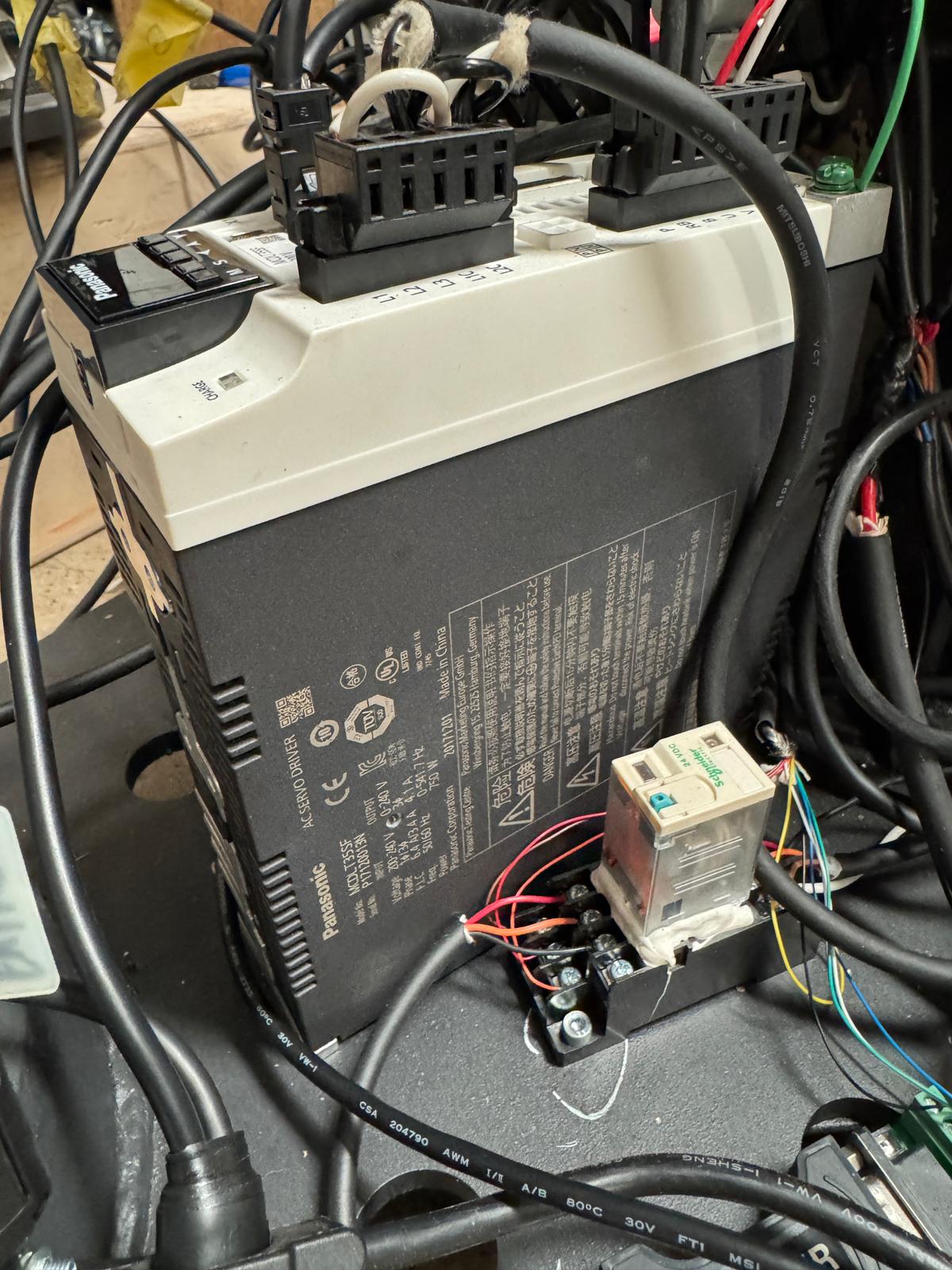

  • Media 1: Image description: Panasonic Minas AC servo driver wiring in a third-party moco crane; visible text includes Panasonic, AC SERVO DRIVER, MCDLT35SF, 200V, CHARGE, A/B.

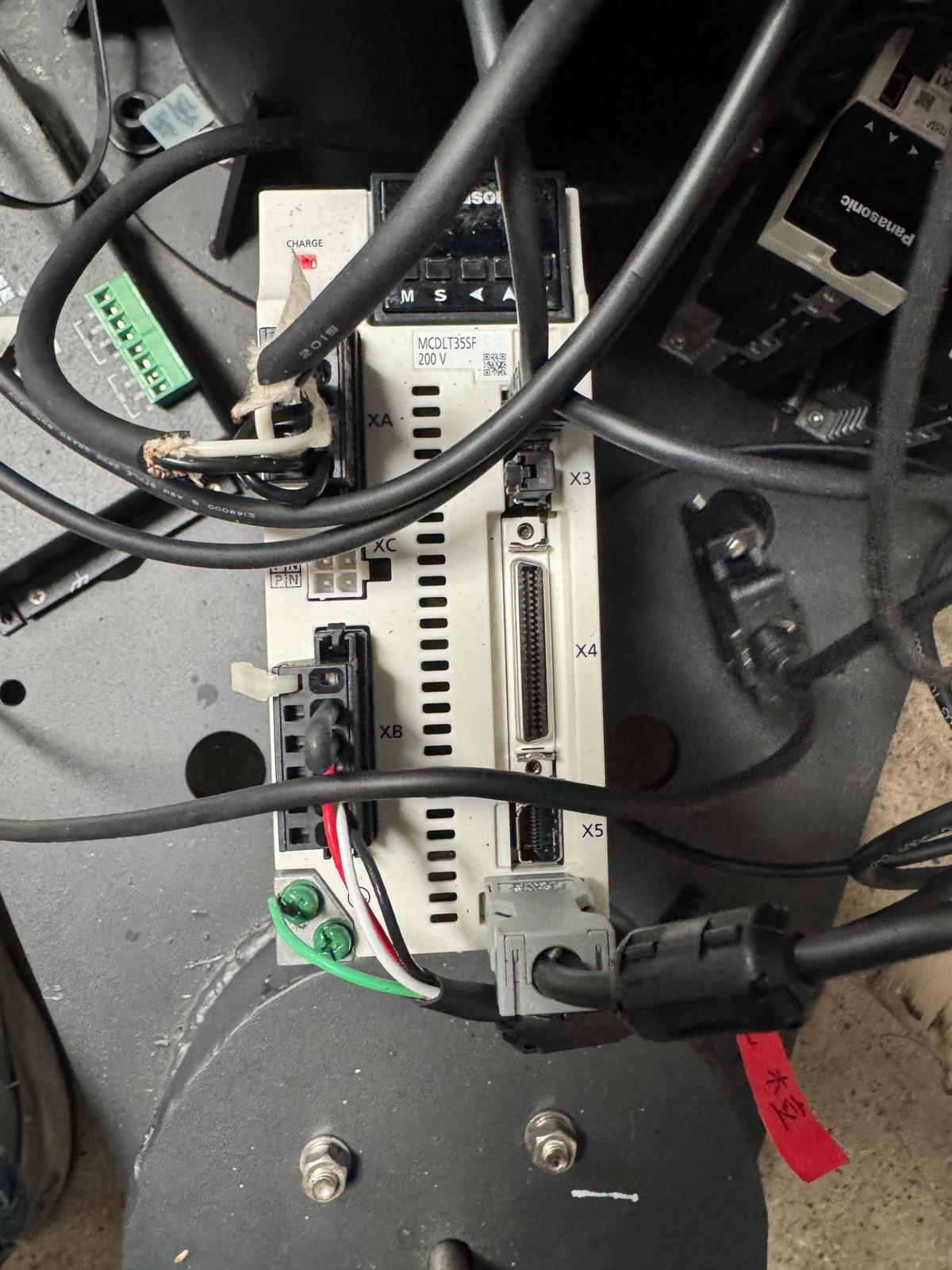

  • Media 2: Image description: Panasonic servo driver connectors including XA, XB, XC, X3, X4, X5; X4 is discussed as the possible step/direction connector path to a QuadBox.

Media Text / Description

  • Visible text: Panasonic, AC SERVO DRIVER, MCDLT35SF, 200V, CHARGE, XA, XB, XC, X3, X4, X5.
  • Image description: Panasonic Minas servo driver inside a third-party moco crane, being evaluated for Flair integration as a model mover or light mover.

WhatsApp Excerpts

  • 2025-08-27 09:21 - Buddy Bleckley: I got a Seeder moco crane for really cheap recently, their software is terrible, and I plan on using it as a model mover or light mover.
  • 2025-08-27 09:21 - Buddy Bleckley: It has Panasonic Minas servo drivers in it, and I can get all my motors to jog from the Panasonic software.
  • 2025-08-27 09:21 - Buddy Bleckley: is there a more elegant way to to get it to work with flair beyond a step and direction from the X4 connectors on the servo drivers to a quad box?
  • 2025-08-27 09:51 - Simon Wakley: Otherwise Step and Direction is simpler but less powerful (No feedback if you trip it).
  • 2025-08-27 10:17 - Simon Wakley: We should make sure it works with ours first as they are not cheap.
  • 2025-08-27 10:17 - Simon Wakley: it is not simply a matter of plugging it in.
