E-Stop Checks¶

Summary¶

If a Bolt will not engage after a camera change, do not assume the camera itself caused the fault. The field advice was to check robot-link network cables, the small network switch in the Flair machine, E-stops, the track pinch wheel assembly, CS8 / Staubli errors, and the correct power-on sequence.

Symptoms¶

After a camera change, pressing the enable button on the E-stop does not engage the robot.
Flair / CS8 shows an error.
The issue may coincide with physical disturbance around the robot, cables, or base.

Community Solutions¶

[LIKELY] Reseat robot-link network and repower the internal switch¶

2024-07-05 — Luey / Stafford Wheaton

Check all robot-link network cables are fully seated.
Repower the small network switch in the back of the Flair machine.
Reboot in the correct order after repowering.

confidence_score: 0.74

[LIKELY] Check E-stops, track pinch wheel, and recent physical changes¶

2024-07-05 — Ben Myers / Gordon Eschke

Also check:

Base E-stop has not been pushed.
Track pinch wheel assembly has not been unplugged.
PC has not had physical changes or Windows updates.
Power cycle and restart with the correct robot/controller/Flair sequence.

confidence_score: 0.7

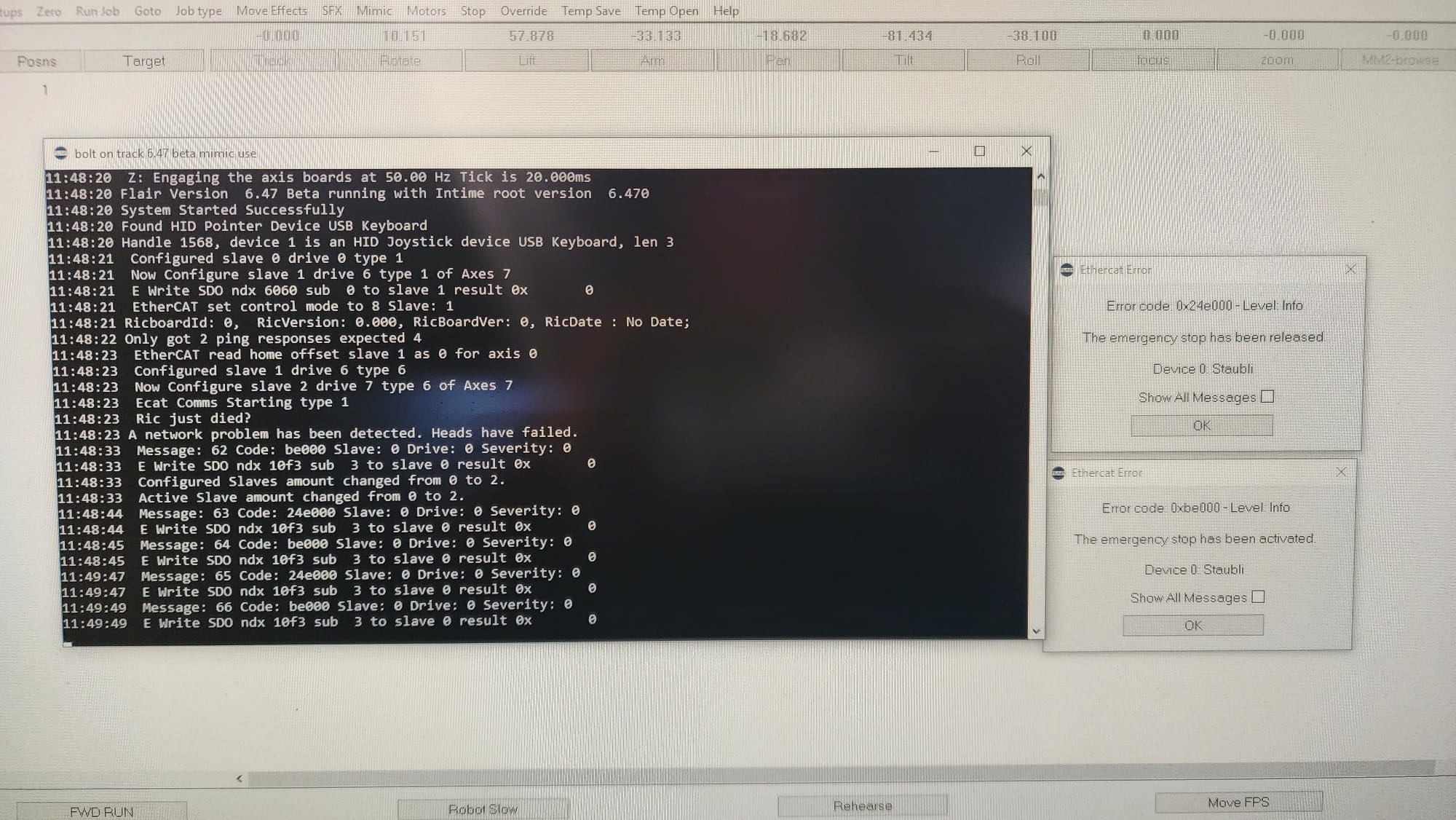

Screenshot/error description: Bolt will not engage after camera change; enable button does not engage robot and Flair/Staubli/CS8 error state appears. Source file: 00025544-VIDEO-2024-07-05-09-48-05.mp4.

Media Text / Description¶

Screenshot/error description: Bolt will not engage after camera change; enable button does not engage robot and Flair/Staubli/CS8 error state appears.

Media 1: Screenshot/error description: Bolt will not engage after camera change; enable button does not engage robot and Flair/Staubli/CS8 error state appears. Source file: 00025544-VIDEO-2024-07-05-09-48-05.mp4.
Media 2: Screenshot/error description: Bolt will not engage after camera change; enable button does not engage robot and Flair/Staubli/CS8 error state appears.

WhatsApp Excerpts¶

[5/7/2024, 9:47:48 am] ~ Luey: Hey guys, after a camera change, the bolt won't engage after pressing the "enable button" on the emergency stop. And chucks up this error. Would anybody have any ideas to try or fix? Thanks

[5/7/2024, 9:48:05 am] ~ Luey:

[5/7/2024, 10:06:33 am] ~ Steve: Paris / France based people …. I tGot this message today, no idea about this person and who they are, just passing it along:

We are looking for an independent Motion Control operator with practical experience in a virtual production studio (1 to 3 years min), ideally with a robot and a computer.

•⁠ ⁠Location: Paris •⁠ ⁠Experience: 1-3 years •⁠ ⁠We have plans for July and August •⁠ ⁠⁠MOCO robot Main effects: •⁠ ⁠Operately operate the camera and the robot simultaneously •⁠ ⁠Make sure you know and master this type of robot •⁠ ⁠⁠Configure the workflow If you have sought-after skills and the mission interests you, contact us!

Yannick@vph.studio +33783153744

[5/7/2024, 10:44:33 am] ~ Luey: does anyone know who the after hours support contact is for Mr Moco? Is it still Fabrizio?

[5/7/2024, 10:46:21 am] ~ Stafford (Staff) Wheaton: Fabrizio or Peter

[5/7/2024, 10:46:35 am] ~ Luey: Thanks

[5/7/2024, 10:55:16 am] ~ Stafford (Staff) Wheaton: I would check all robot link network cables are all in and also re power the small network switch in the back of the flair machine...

[5/7/2024, 10:55:28 am] ~ Stafford (Staff) Wheaton: Then reboot...

[5/7/2024, 10:59:13 am] Ben Myers: Did someone push an e-stop on the base? And is this a track model? Did the track pinch wheel assembly get unplugged?
