Small TT Trips on Engage With New UniBox¶

Summary¶

A new UniBox used to run a Small TT tripped whenever the axis was engaged. The operator tested whether camera sync was the culprit and confirmed the trip still happened with camera sync turned off. The thread did not provide a final fix, so this page preserves the field report and triage path without claiming a solution.

Symptoms¶

New UniBox connected to Small TT.
Axis trips immediately when attempting to engage.
Turning off camera sync does not clear the trip.

Triage Path¶

[LIKELY] Separate sync from axis/network causes¶

2024-10-05 — Josh Ellis-Tufts

Disable camera sync in Setups -> External Camera Setup or the relevant sync / trigger setup screen to confirm whether sync is involved.
If the trip remains, treat it as a UniBox / axis setup / drive connection problem rather than a sync problem.
Check the UniBox in Setups -> Network Setup, then check axis type, motor wiring, and limits in Setups -> Axis Setup before trying repeated engages.
Escalate with the screenshot and UniBox/Small TT configuration if no axis setup mismatch is found.

confidence_score: 0.52

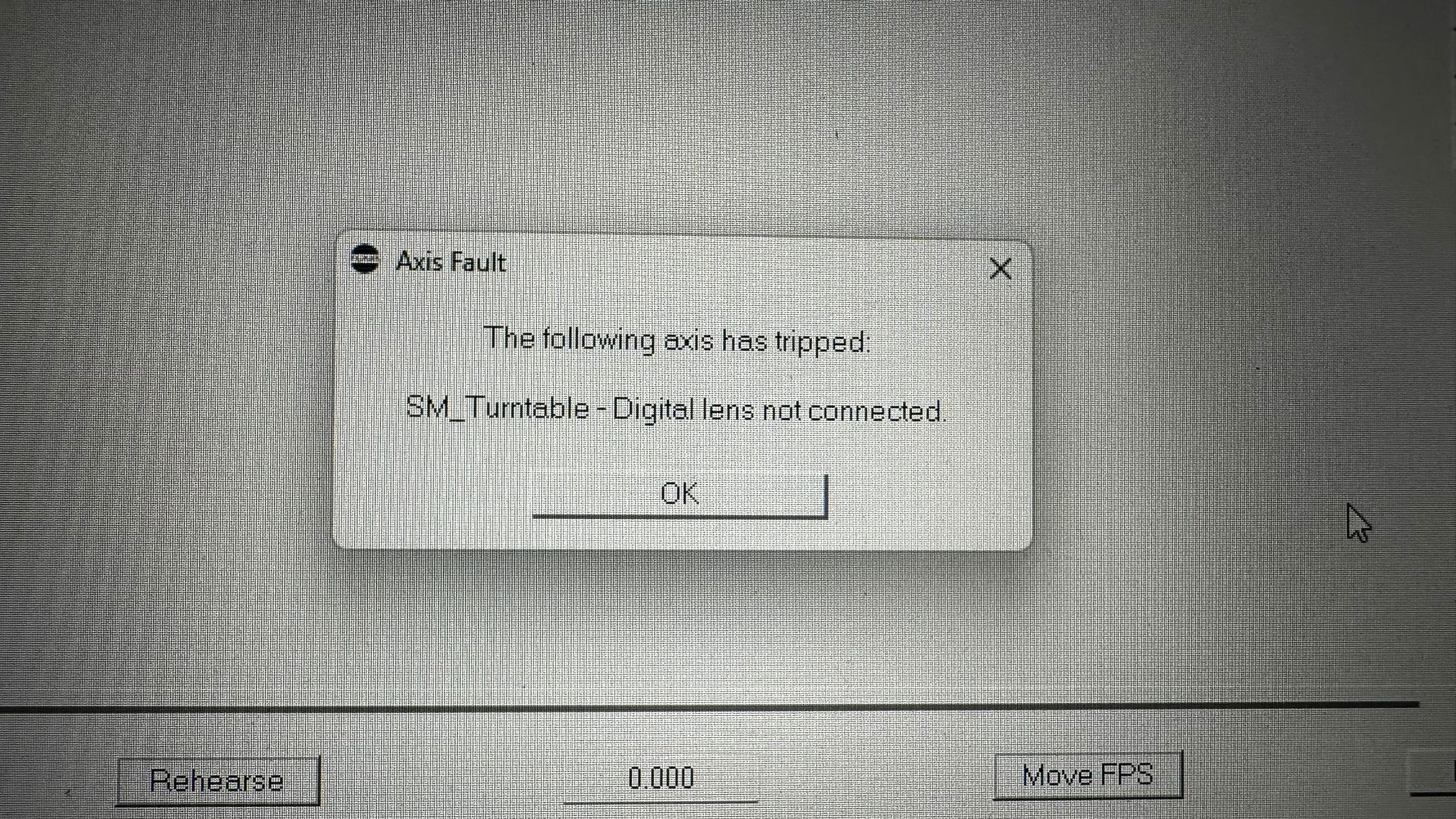

Image description: Small TT / new UniBox screenshot where the axis trips immediately on engage and still trips with camera sync disabled. Searchable terms: Small TT trips on engage; new UniBox trip; turntable UniBox error; camera sync not culprit; small turntable engage trip.

Media Text / Description¶

Image description: Small TT / new UniBox screenshot where the axis trips immediately on engage and still trips with camera sync disabled.

Media 1: Image description: Small TT / new UniBox screenshot where the axis trips immediately on engage and still trips with camera sync disabled. Searchable terms: Small TT trips on engage; new UniBox trip; turntable UniBox error; camera sync not culprit; small turntable engage trip.

WhatsApp Excerpts¶

[5/10/2024, 1:18:23 am] ~ Josh Ellis-Tufts: Has anyone seen this error before? We just got a new Unibox to run our Small TT through however it trips with this error whenever I try to engage the axis. Thought camera sync might have been the culprit but turned that off and still getting the same error. Thanks

[5/10/2024, 1:48:07 am] ~ Simon Wakley: There’s 343 members and I got 12 votes. Vote please it lets me know what to explain better or maybe we’ll post videos explaining..

[5/10/2024, 1:55:13 am] ~ Marcin Biegunajtys: I’ll vote again

[5/10/2024, 2:29:44 am] ~ Peter Constan-Tatos: Sorry Simon voted, know about them, played but never used them in any meaningful way. I looked at Josh’s & Julian’s post too so looking forward to hearing more on the subject. 🙏

[5/10/2024, 2:30:18 am] ~ Steve_Schweiger: Sorry what vote?

[5/10/2024, 2:30:58 am] ~ Peter Constan-Tatos: This

[5/10/2024, 2:31:59 am] ~ Steve_Schweiger: Waiting for Tutorial how to set up in Flair 7 then i will give it a try. On the Workshop in NY i heard the first time of it… so need some time.
