CS8 Errors After 208/240V Power Change — Loose Wires or CombiTac Connector¶

Summary¶

If CS8 errors start appearing after changing the controller power cable or site voltage wiring, inspect the controller wiring and the CS8-to-robot CombiTac connector before treating the error as a software problem. The field discussion identified loose rear CS8 wires and the spring-loaded CombiTac fibre/power connections as the key checks.

Symptoms¶

Error appears every few minutes after changing the CS8 208V / 240V power cable.
Similar or repeated CS8 error codes appear.
Robot may also show pendant messages such as overspeed or other controller-level faults.

Community Solutions¶

[LIKELY] Recheck power conversion wiring and rear CS8 connections¶

2022-12-24 — Marcin Biegunajtys / Simon Wakley

Power down and isolate before opening or inspecting controller wiring.
Recheck the three loose / changed wires at the rear of the CS8.
Confirm the controller is correctly configured for the local supply.
If available, plug in the Staubli pendant and read the controller error history for more exact fault text.

confidence_score: 0.78

[LIKELY] Inspect the CS8-to-robot CombiTac connector¶

2022-12-24 — Simon Wakley

The CombiTac connector between CS8 and robot contains spring-loaded fibre optic connections and other contacts. Inspect carefully for seating or intermittent contact.

Flex the cable gently while the fault is being diagnosed.
Look for intermittent behaviour as the connector moves.
Do not touch the fibre optic contact faces.

confidence_score: 0.74

Safety Note¶

Controller power wiring and CombiTac inspection are electrical / robot-service tasks. Use qualified support where site policy or local regulations require it.

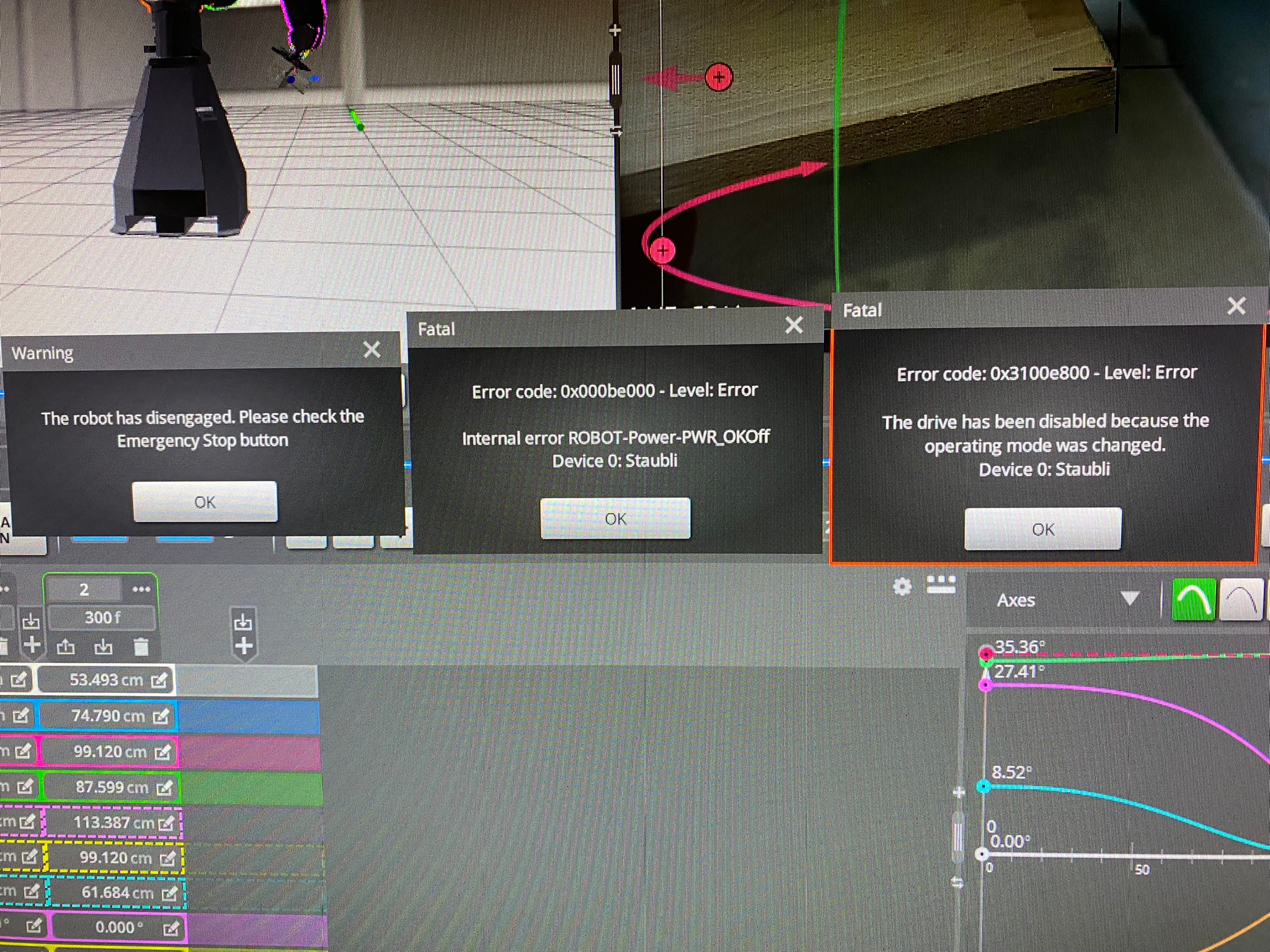

Image description: CS8 / Staubli controller error screenshot after a 208V / 240V power-cable change, pointing to loose rear controller wires or CombiTac connector seating. Searchable terms: CS8 after power cable change; 208 240 CS8 error; CombiTac connector; loose CS8 wires; Staubli overspeed after power change.
