RT14 Load Error on Startup — Running Light Solid / Network Reload

Summary

If Flair reports a problem loading the RT14 at startup and the RT14 running light is solid rather than flashing, check RT14 power and the network path between PC, black box, and RT14. In the resolved case, power-cycling/restarting the system cleared it.

Symptoms

  • Startup warning appears when opening Flair.
  • Small E-stop / enable does not engage.
  • RT14 is powered but the running light is solid.
  • Error indicates a problem loading the RT14.

Community Solution

[CONFIRMED] Check RT14 power/network, power-cycle RT14, then reload Flair

2025-09-20 — Sasha / Stafford

  1. Confirm the RT14 is powered.
  2. Confirm the small network switch is powered.
  3. Check network cables between PC, black box, and RT14.
  4. Power-cycle the RT14.
  5. Reload Flair after the RT14 is up.
  6. The RT14 running light should flash at roughly 50 cycles/second, not remain solid.

The reporter confirmed: "Just a restart did it."

confidence_score: 0.9

Screenshot/error description: RT14 startup/load warning with RT14 running light solid instead of flashing; network reload or power-cycle required. Screenshot/error description: RT14 startup/load warning with RT14 running light solid instead of flashing; network reload or power-cycle required. Screenshot/error description: RT14 startup/load warning with RT14 running light solid instead of flashing; network reload or power-cycle required.

Media Text / Description

  • Screenshot/error description: RT14 startup/load warning with RT14 running light solid instead of flashing; network reload or power-cycle required.
  • Media 1: Screenshot/error description: RT14 startup/load warning with RT14 running light solid instead of flashing; network reload or power-cycle required.
  • Media 2: Screenshot/error description: RT14 startup/load warning with RT14 running light solid instead of flashing; network reload or power-cycle required.
  • Media 3: Screenshot/error description: RT14 startup/load warning with RT14 running light solid instead of flashing; network reload or power-cycle required.

WhatsApp Excerpts

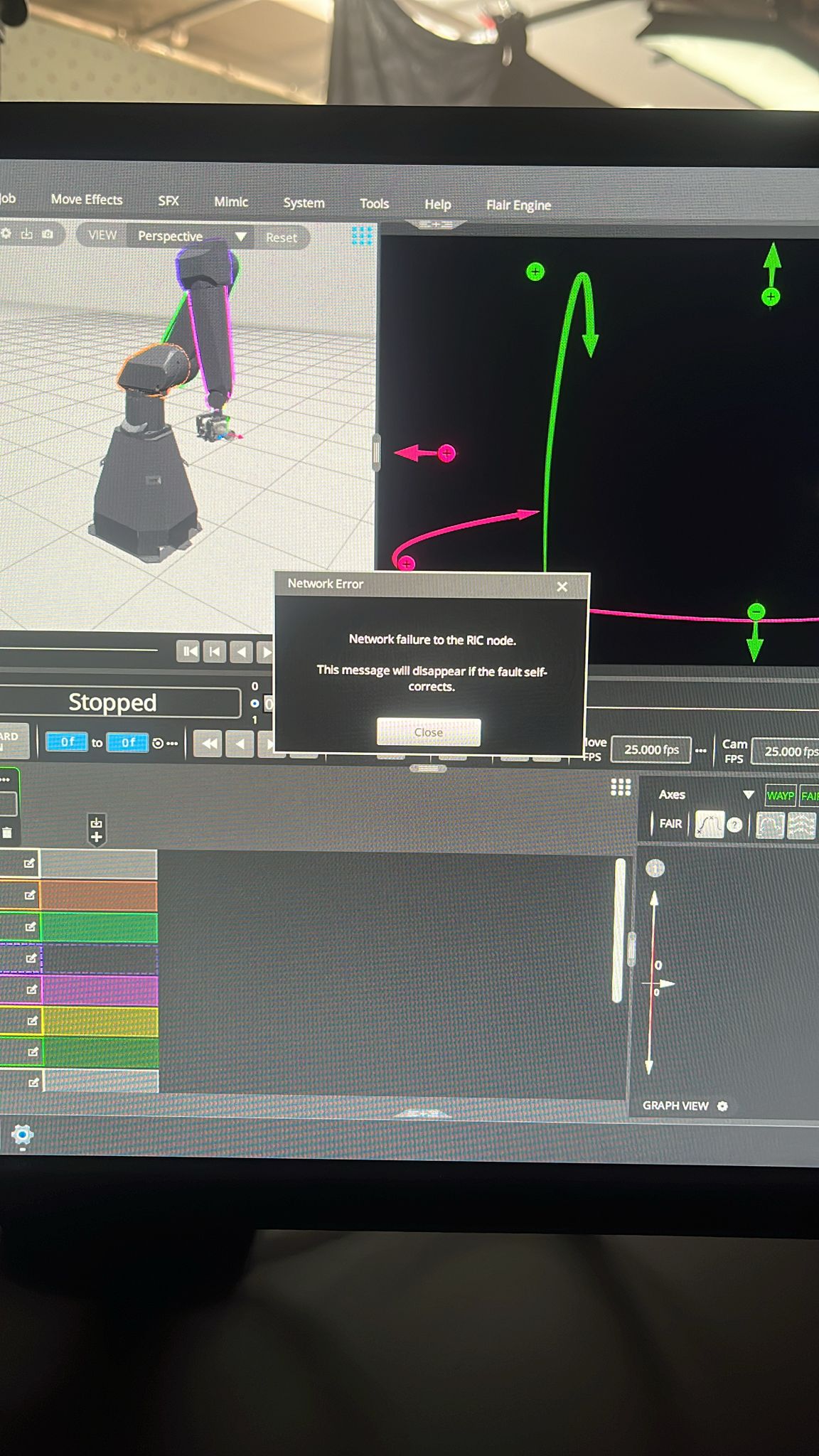

[20/9/2025, 6:22:36 pm] ~ Sasha: Goodmorning. We started the bolt this morning and getting this message and we are not sure what to do to fix this… anyone know what we are doing wrong?

[20/9/2025, 6:24:12 pm] ~ Stafford: RT14 powered up?

[20/9/2025, 6:24:26 pm] ~ Stafford: Small switch powered?

[20/9/2025, 6:26:07 pm] ~ Sasha: Here it’s staying on A.

[20/9/2025, 6:26:08 pm] ~ Sasha: And the small ermergency is not turning to enabled

[20/9/2025, 6:27:48 pm] ~ Sasha:

[20/9/2025, 6:27:50 pm] ~ Stafford: Rt14, little network switch?

[20/9/2025, 6:28:03 pm] ~ Stafford: Rt14 on?

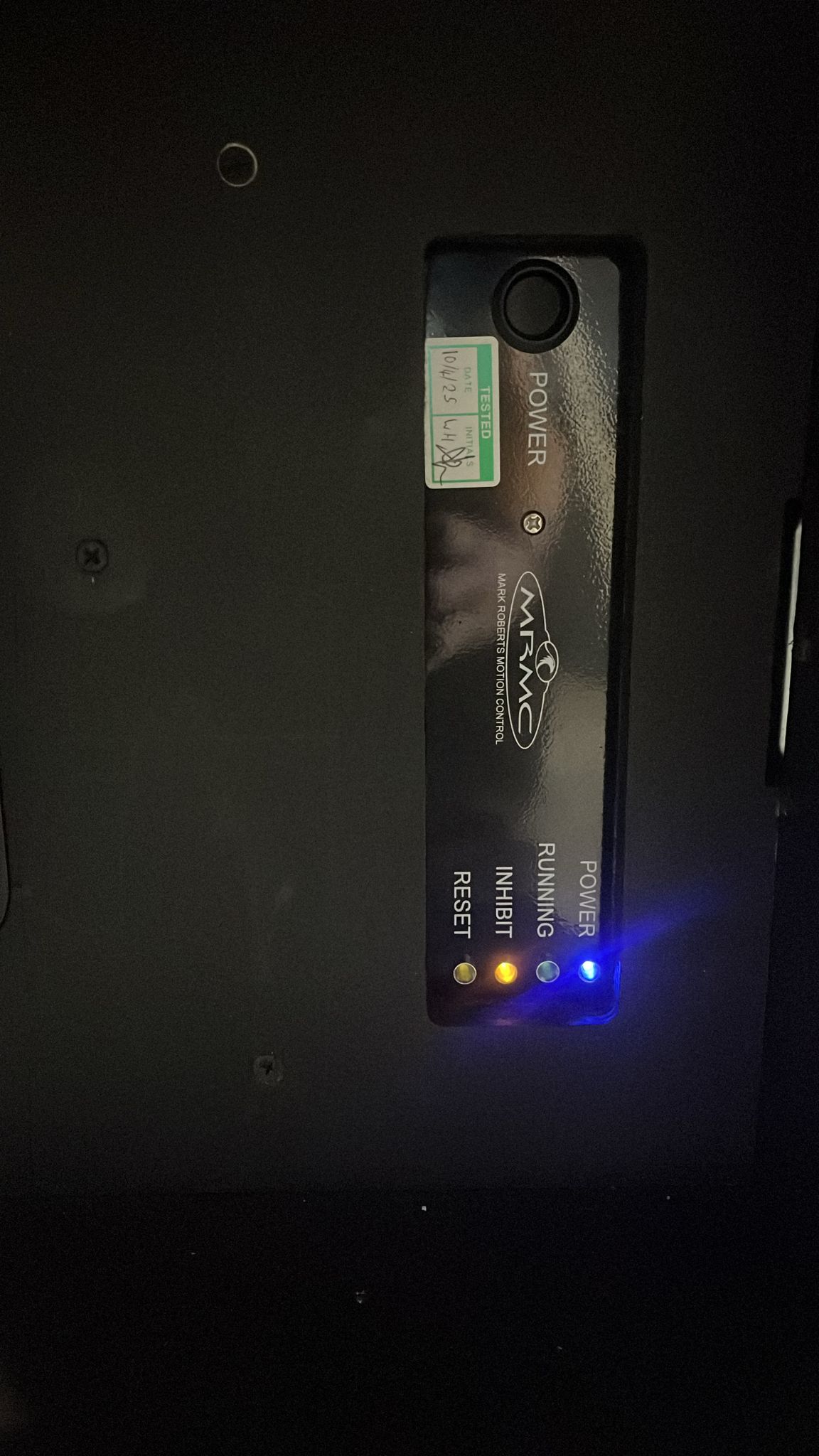

[20/9/2025, 6:30:02 pm] ~ Sasha: Rt14 being this? Looks to be on

[20/9/2025, 6:30:33 pm] ~ Stafford: Looks ok.

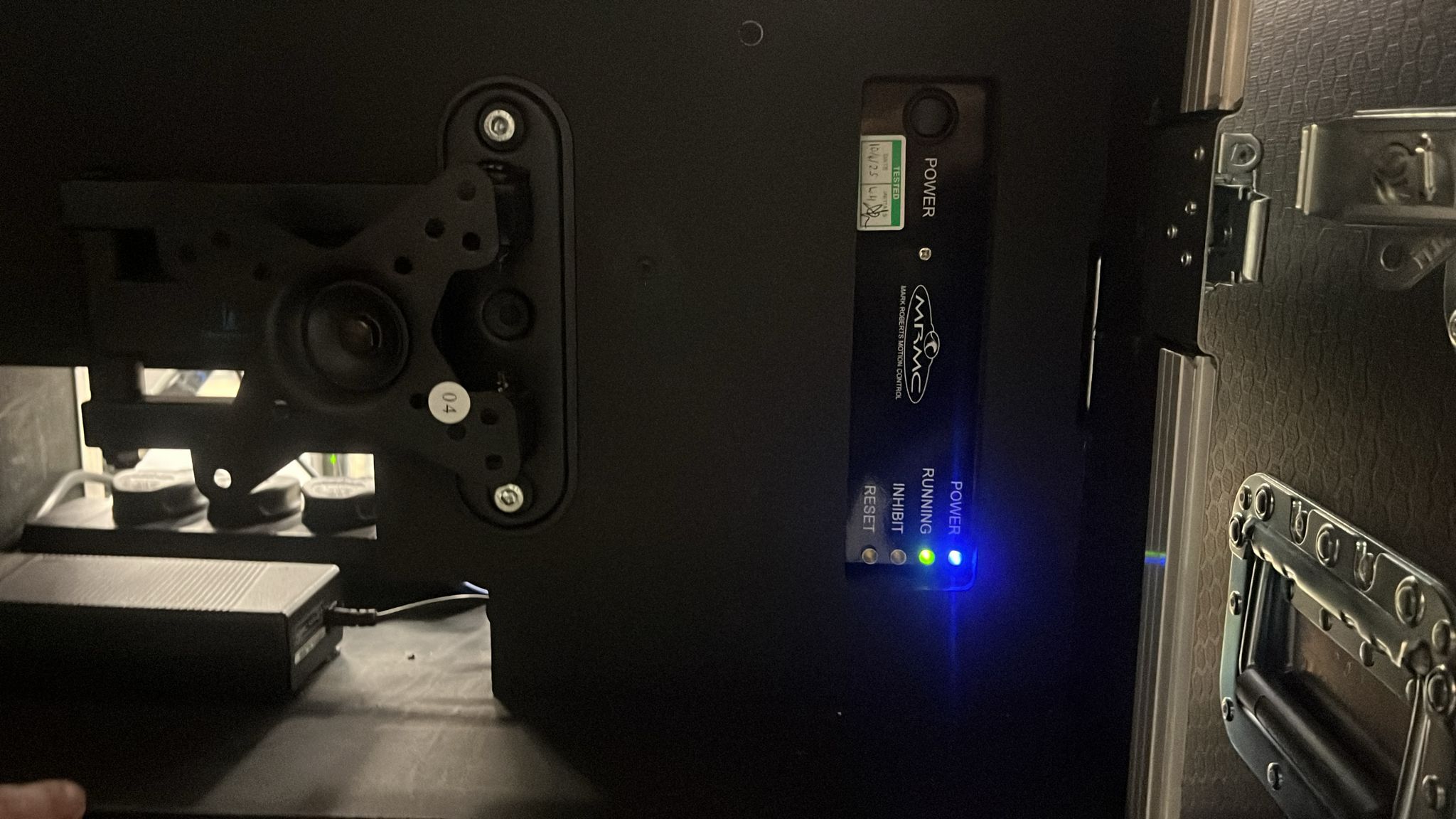

[20/9/2025, 6:30:55 pm] ~ Stafford: RT 14 is the interface box which is behind the monitor

[20/9/2025, 6:31:21 pm] ~ Sasha:

[20/9/2025, 6:31:42 pm] ~ Stafford: Yup

[20/9/2025, 6:32:03 pm] ~ Stafford: Running light is solid or flashing?

[20/9/2025, 6:32:09 pm] ~ Sasha: Solid

[20/9/2025, 6:32:29 pm] ~ Stafford: Anyway the error message is telling us that there is a problem loading the RT14

Official Documentation

Flair Classic Manual — Ch.14A High Speed Robots / EtherCAT — p.235

Flair Classic Manual — Ch.22 Network Direct — p.313

Flair 7 Manual — Ch.11 High Speed Robots / EtherCAT — p.195

Flair 7 Manual — Ch.19 Network Direct — p.263
